SUSPENDED PLATFORM

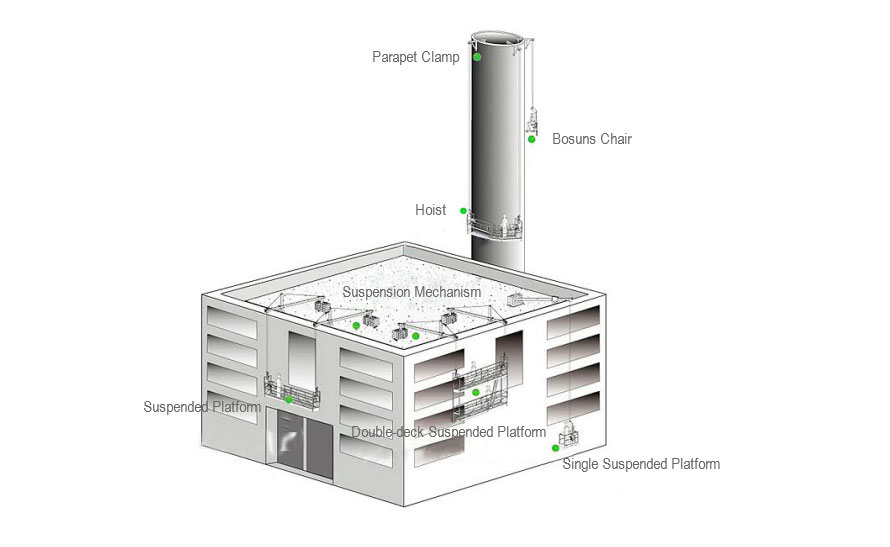

COSMO Brand ZLP series Temporarily Installed Suspended Access Equipment is an ideal working access for fa?ade works of high-rising buildings as facade construction, decoration, maintenance and so on. And it is also widely used into elevator installing, ship building and repairing, or in other works such as big-size tank, bridge, embankment and chimney.

It is easy for operation, flexible for moving, reliable in safety. It can take the place of construction scaffolding, improve the efficiency and save cost. Above all, COSMO Platforms provide a safer, easier and more efficient working access for workers.
Type Property ZLP500 ZLP630 ZLP800 ZLP1000
Rated load(kg) 500 630 800 1000
Lifting speed(m/min) 9.3 9.3 8.2 8.2
Motor power(kw) 2*1.5kW 2*1.5kW 2*1.5kW 2*1.5kW
Brake torque(Nm) 15 15 16 16
Steel rope angle adjusting range(°) 3°- 8° 3°- 8° 3°- 8° 3°- 8°
Distance between two steel rope(mm) ≤100 ≤100 ≤100 ≤100
Rated stretch of front beam(mm) 1300 - 1700 1300 - 1700 1300 - 1700 1300 – 1700
Working Platform Safety Lock LSB30 LSB30 LSB30 LSB30
Nr.Of platform rack Single-deck Single-deck Single-deck Single-deck
Nr.Of platform(pcs) 2 3 3 3
L×W×H(mm) (2500×2)×690×1180 (2000×3)×690×1180 (2500×3)×690×1180 (2500×3)×690×1180
Weight(kg) 300 360 450 450
Suspension mechanism(kg) 2×175kgs
Counterweights(kg) 750 900 1000 1250
Diameter of steel rope(mm) 8.3 8.3 8.6 8.6
Lifting height(m) 100 100 100 100
Motor rotation speed(r/min) 1420 1420 1420 1420
Voltage(V) 220/440V,3 Phase 220/440V,3 Phase 220/440V,3 Phase 220/440V,3 Phase
Frequency(HZ) 50/60 50/60 50/60 50/60
Hoist Ltd 5.0 Ltd 6.3 Ltd 8A Ltd10
